Uses: The wire bright annealing furnace is suitable for bright annealing of black and non-ferrous metal wire products in vacuum and protective atmosphere
Gas Type Cover Type Spheroidizing Annealing Furnace
| Model | Loading Diameter | Loading Height | Furnace Diameter | Furnace Height | Total Height | Driving Height | Pit Foundation | Total Weight(Ton) | Driving Load(Ton) |
| RBG-180/220 | 1800 | 2200 | 2950 | 2900 | 4650 | 6500 | 4000*4000 | 13 | 5 |
| RBG-200/220 | 2000 | 2200 | 3150 | 2900 | 4650 | 6500 | 4500*4500 | 13.5 | 5 |
| RBG-280/200 | 2800 | 2000 | 4000 | 2800 | 4500 | 6500 | 5300*5300 | 18 | 5 |
| RBG-280/220 | 2800 | 2200 | 4000 | 3100 | 4900 | 6500 | 5300*5300 | 19 | 5 |
| RBG-290/230 | 2900 | 2300 | 4100 | 3200 | 5000 | 6800 | 5500*5500 | 21 | 5 |
| RBG-305/240 | 3050 | 2400 | 4200 | 3300 | 5100 | 6900 | 5600*5600 | 22 | 7.5 |
| RBG-305/320 | 3050 | 3200 | 4200 | 4100 | 6300 | 8500 | 5600*5600 | 27 | 10 |
| RBG-320/180 | 3200 | 1800 | 4350 | 2500 | 4300 | 6000 | 5800*5800 | 22 | 7.5 |
| RBG-320/240 | 3200 | 2400 | 4350 | 3300 | 5100 | 6900 | 5800*5800 | 24 | 7.5 |
| HSBP-320/320 | 3200 | 3200 | 4350 | 4100 | 6300 | 8500 | 5800*5800 | 28 | 10 |
| RBG-350/320 | 3500 | 3200 | 4650 | 4100 | 6300 | 8500 | 6000*6000 | 30 | 10 |
| RBG-360/320 | 3600 | 3200 | 4750 | 4100 | 6300 | 9000 | 6000*6000 | 32 | 10 |
Features
1.After annealing, the surface of the material has no scale, slight decarburization, high spheroidization rate and stable quality.
2.The latest design, the new trend, the high quality, low price wire industry is the best choice.
3.The furnace cover (containing direct methanol drip port) uses ceramic fiber cotton, which has better heat-dissipating effect, and the furnace cover structure is lighter and stronger.
4.Outer furnace body: The furnace wall is made of high-grade ceramic fiber cotton, compact and strong pressure processing method. The multi-layer broken heat cotton and refractory brick at the bottom of the furnace have excellent heat-breaking effect.
5.The inner barrel and the convection structure are lightweight and have a long life. Achieve a reasonable heating method dominated by convection, and the temperature of the internal and external workpieces is more uniform
6.Super convection fan: large air volume, high intensity, fast heating, saving time and power.
7.Strong cooling system speeds up cooling, saves time and improves production efficiency.

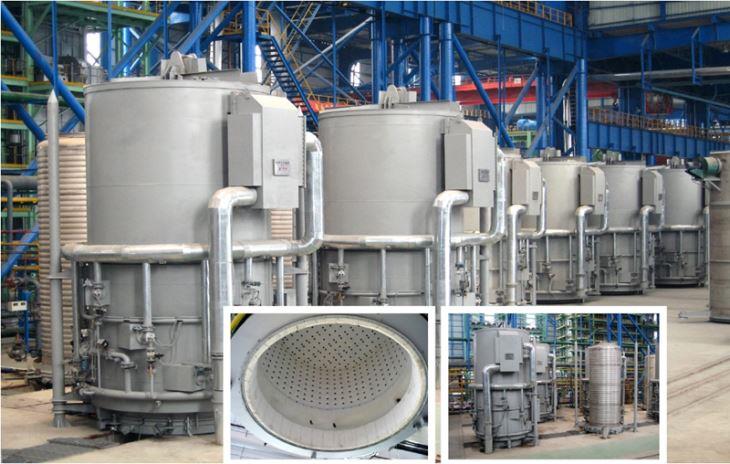

Wire Bright Annealing Furnace
